Series CU, CCS, CH, CB

ViNtrol high quality commodity threaded floating ball valves feature standard materials of ductile iron, carbon and stainless steel, forged and cast construction in threaded end connections. Available with a variety of seats, seals and end connections.

CU
CCS & CSS
CH3 & CH6
CBS

Size Ranges

1/4” thru 2”
Pressure range up to 2000 psi
Threaded end connections in:

Series CU: Unibody:

  • Size Range: 1/4” thru 2”
  • Pressures up to 2000 psi
  • Offers the Safety and Strength of Wrought Steel in a Large Port Configuration

Series CCS & CSS: Two Piece Seal-Welded Design:

  • Size Range: 1/4” thru 2” Full Port
  • Pressures up to 2000 psi
  • Stainless steel and Carbon steel
  • ANSI B1.10.1, NACE MR0175, and Firesafe
  • ASME B16.34

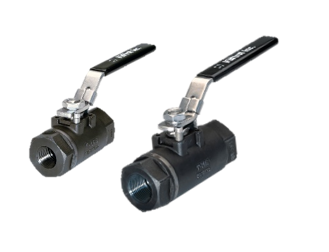

Series CH3 & CH6 High Pressure: Two Piece Seal-Welded Design

  • Size Range: 1/2” thru 2” Full Port
  • Pressures 3000 and 6000 psi
  • LCC Low-Temp Carbon steell
  • 316 Stainless steel Ball & Stem
  • Firesafe and NACE MRO175

Series CBS:Two Piece Brass

  • Size Range: 1/4"-2" 600 PSI W.0.G.
  • Pressures 3000 and 6000 psi
  • LCC Low-Temp Carbon steell
  • 316 Stainless steel Ball & Stem
  • Firesafe and NACE MRO175

*Consult Factory
